These master cylinders have been designed for a very long life and assure very long trouble free service. We have tested them over 100,000 cycles with success. The piston is protected from dust by a lipseal.
- available for DOT4 fluid OR for MINERAL (MIL FLU-ID) (seals are different, never mix)
- high quality aluminum alloy machined from solid on CNC
- 100% protected from corrosion: anodized coating and stainless steel components
- light weight: more than 30% of weight saving compare to standard master cylinder
- ultralow friction for improved efficiency

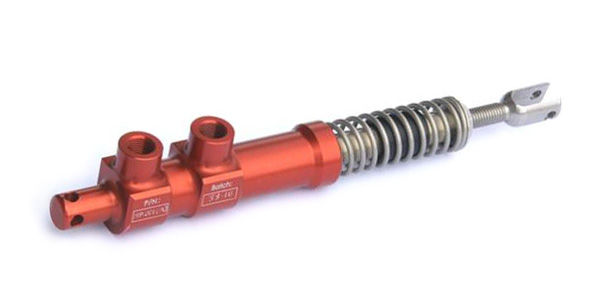

MP-001

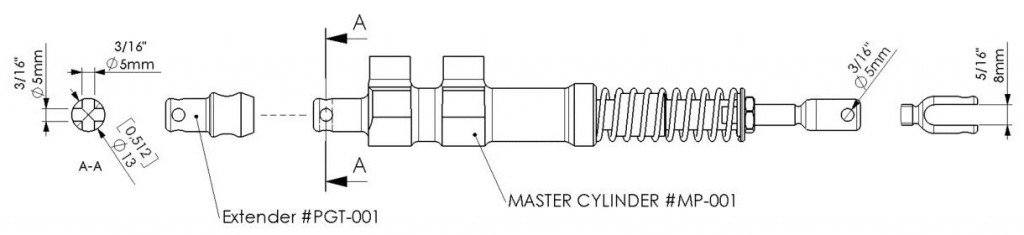

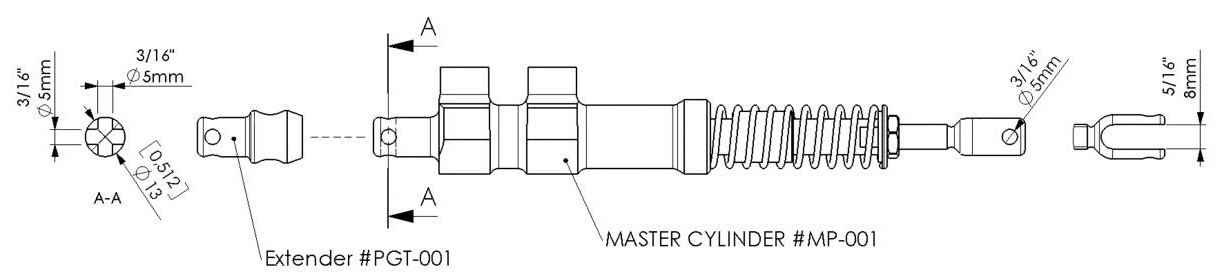

Attachments available
MP-001: dodatki

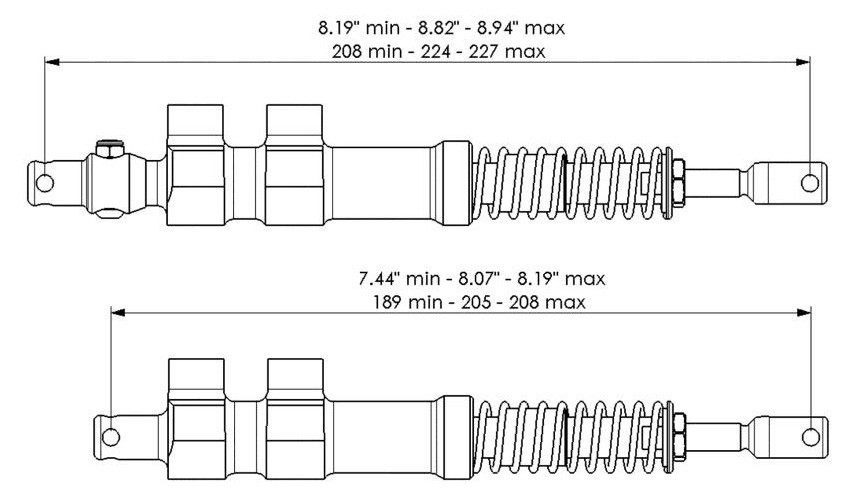

Pin-to-Pin length
MP-001: odległość pin-pin

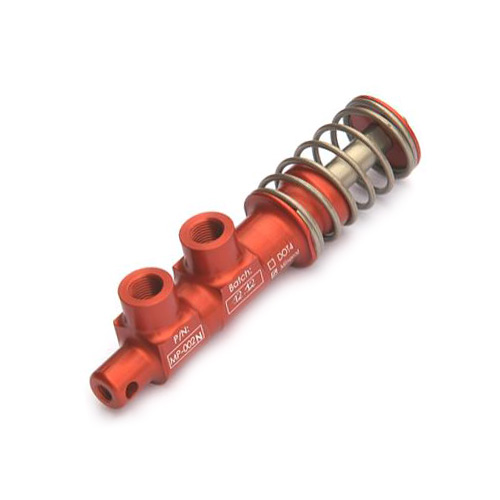

MP-002

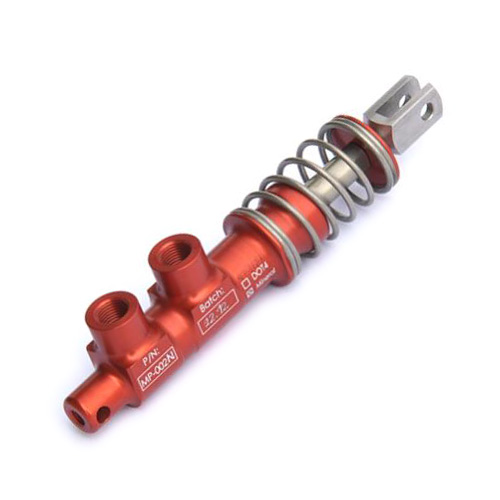

MP-002 + CHP-003

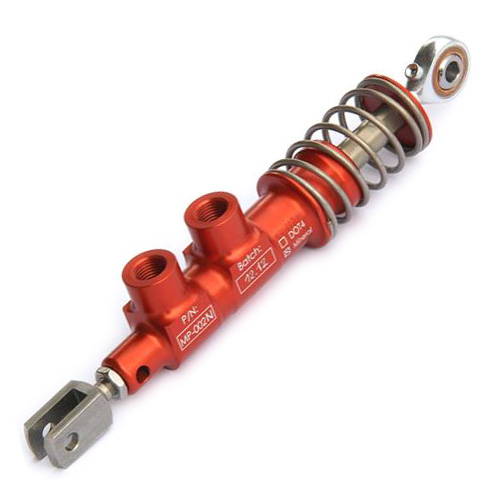

MP-002 + CHP-003 + ZM-001

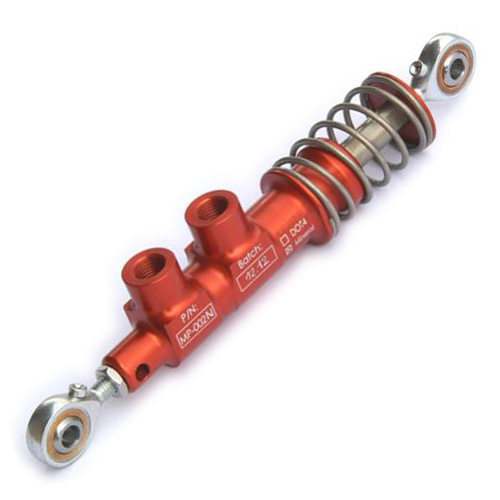

MP-002 + ZM-001 + ZM-001

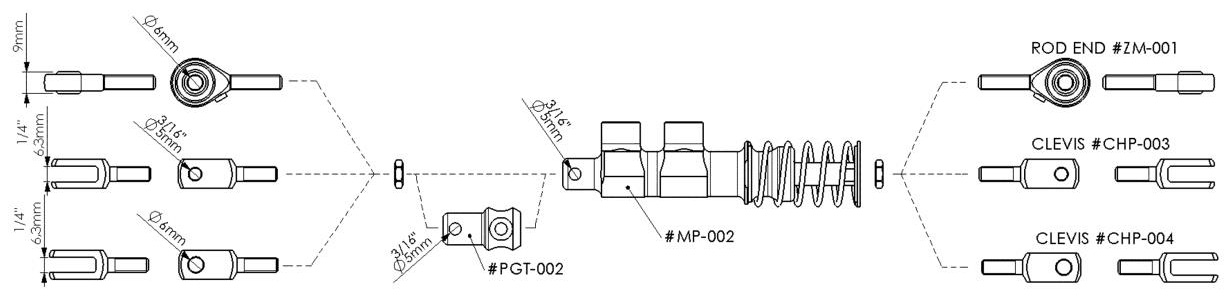

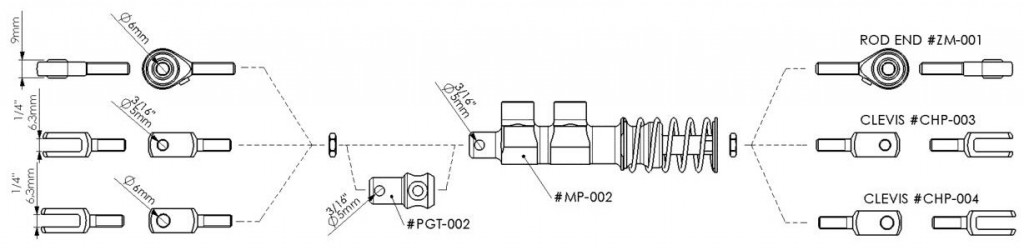

Attachments available
MP-002: dodatki

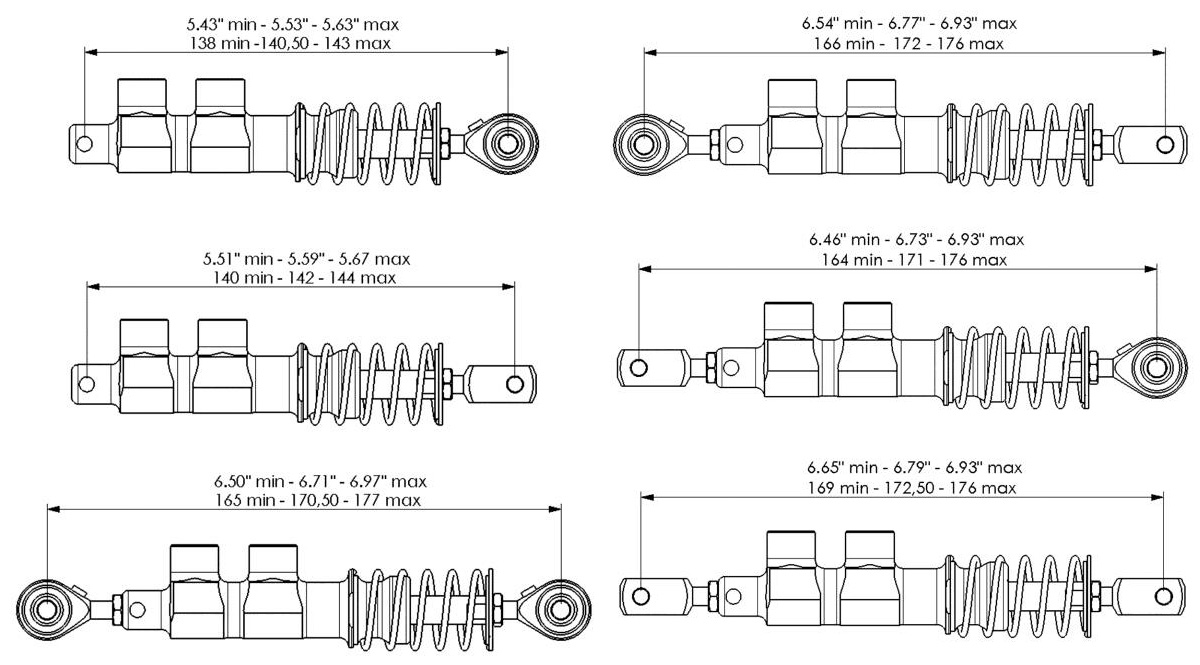

MP-002 : Pin-to-Pin length
MP-002: odległość pin-pin

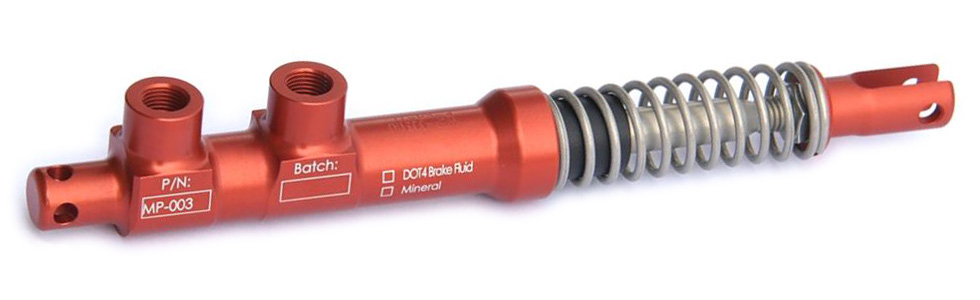

MP-003 + CHP-002

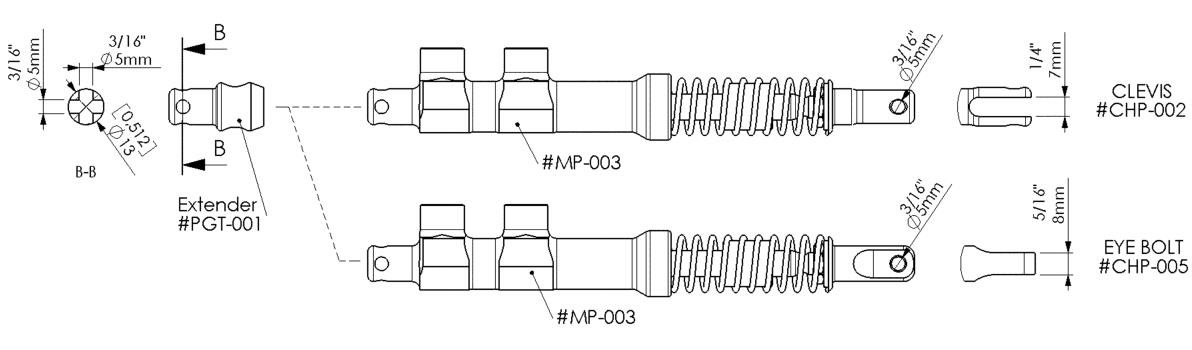

End pieces available
MP-003: końcówki

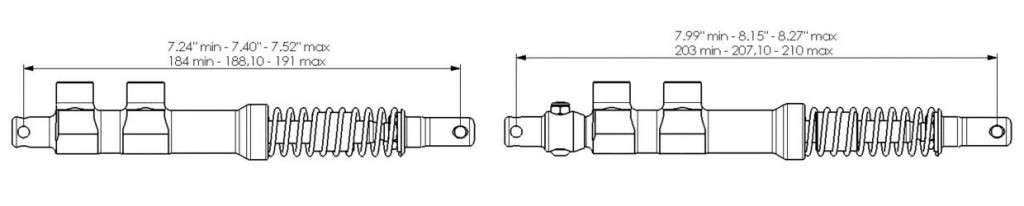

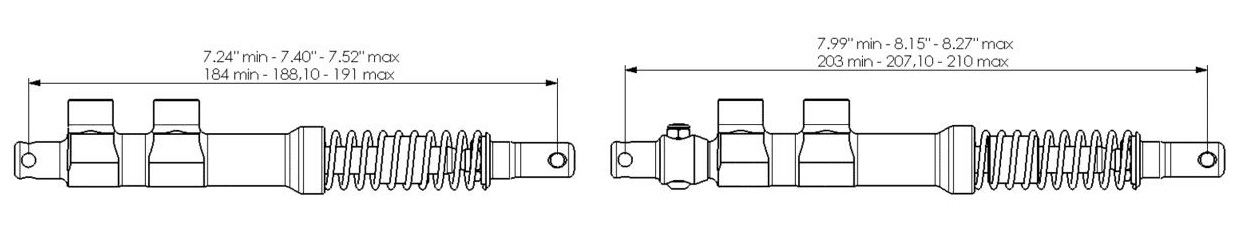

Pin-to-Pin length
MP-003: odległość pin-pin

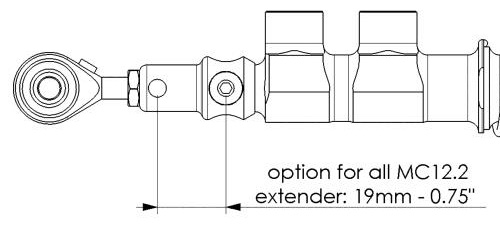

Extenders can bring all master cylinders to a longer pin-to-pin distance.
- for MP-001 and MP-003 use PGT-001

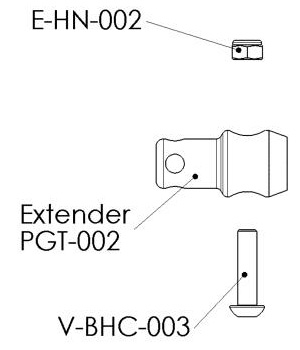

- for MP-002 use PGT-002
Pompa hamulcowa: przedłużacz
Pompa hamulcowa: przedłużacz

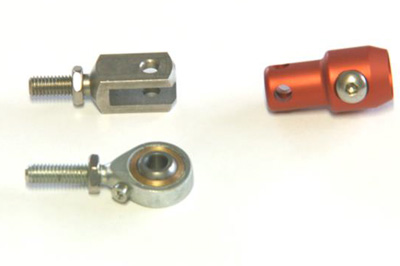

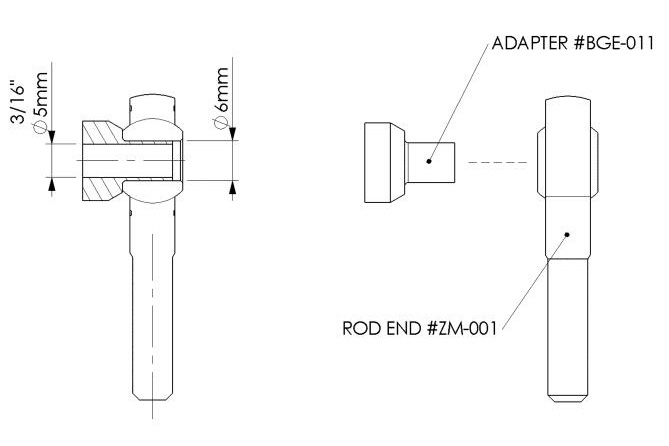

Adapter for rod ends:
- our rod ends are only metric Ø6mm. For connexion with 3/16″ bolts, please order the adapter P/N: BGE-011
Pompa hamulcowa: adapter
Pompa hamulcowa: adapter
