HOSE ASSEMBLIES: improve your braking system
Retrofit your plane with stainless steel brake hose assemblies. They provide consistent brake pedal pres-sure without spongy feeling. The flexibility allows landing gear leg movements and avoids leakage that appears with hardline tube.Two types are available:
Retrofit your plane with stainless steel brake hose assemblies. They provide consistent brake pedal pres-sure without spongy feeling. The flexibility allows landing gear leg movements and avoids leakage that appears with hardline tube.Two types are available:
- hoses and fittings to be screwed: SCREW IT YOURSELF: You order brake hose and brake fittings separately and you follow the «assembly instructions» delivered with the parts
- ready to be used hose and fitting lines: WE ASSEMBLE the lines according to your specifications and we DELIVER THEM READY TO INSTALL
Przewód hamulcowy
SCREW IT YOURSELF: You order brake hose and brake fittings separately and you follow the «assembly instructions» delivered with the parts.
BERINGER Brake hose is stainless steel braided with PTFE inner tube and stainless steel fittings.
- provides consistent brake pedal pressure without spongy feeling
- flexibility allows landing gear leg movements and avoids leakage that appears with hardline tube
- ends can be straight fittings, female concave seat: 7/16×20 or 3/8×24 (steel plated or stainless)
- maximum pressure 3000 PSI – strength pressure 9000PSI
Złączki
Złączki
Złączki
HEA02-HEA01
HEA03
HEA08
HYD-003P
HYD-005B
HYD-008P
HYD-011D
HYD-016P
ZGA01
HEA12
| Part Number | Description |
|---|---|
| HDB01 | Hose Ø 6,7mm – inner tube PTFE high temperature – Stainless steel braided (per meter ) |

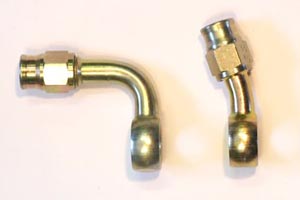

| HEA01 | Banjo fitting 20° |
| HEA02 | Banjo fitting 90° |
| HEA03 | Twin Banjo |
| HYD-008P | Straight fitting, male M10x1 |
| HYD-016P | Brake adaptor Metric M10x1 / 7/16×20 |
| HYD-024VD | Adaptor 3/8ʺ UNF – 1/8 NPTF |

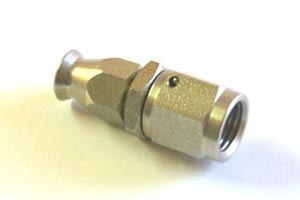

| HEA08 | Straight fitting, female concave seat 7/16×20 (stainless) |
| Part Number | Description |
|---|---|
| HDB02 | Hose Ø 5,2mm – inner tube PTFE high temperature – Stainless steel braided (per meter ) |
| HEA13 | Banjo fitting straight Ø 5,2mm stainless |
| HEA14 | Straight fitting 3/8×24 stainless Ø 5,2mm |
| HEA15 | T fitting |
| Part Number | Description |
|---|---|
| HEA12 | Olive spare part for Ø 6,7mm hose only |
| HYD-005B | Copper seal |
| HYD-003P | Banjo bolt M10x100 |
| HYD-011D | Fitting for rubber hose (connection to reservoir) |
| HDA01 | EPDM hose for reservoir, specific DOT4 brake fluid – per m |
| ZGA01 | Cushioned tube clamps for stainless steel hose (batch 10 clamps) |
| HEA11 | Bulkhead fittings |

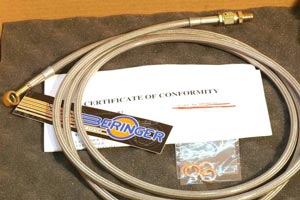

WE ASSEMBLE THESE HOSES AND FITTINGS and WE DELIVER THEM READY TO INSTALL.
Choose your fittings, your length and order your brake hose assembly ready to use. Do not hesitate to contact us when you will choose the fittings, we will help you.

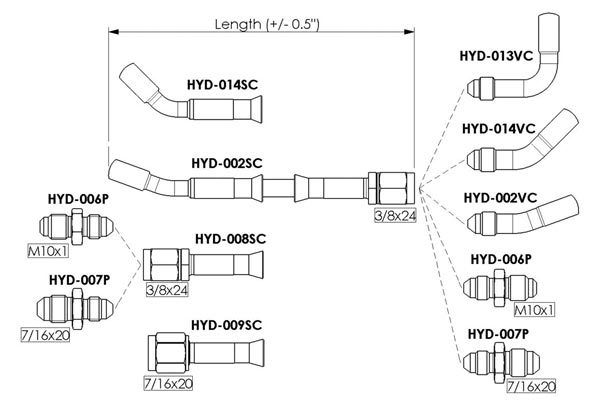

Montaż węży: schemat
| Part Number | Description |
|---|---|
| HDB03 | Hose Ø7,5 mm – inner tube: PTFE high temperature – Stainless steel braided + protecting cover (per meter ) |
| HYD-013VC | Banjo fitting 90° – 3/8×24 |
| HYD-014VC | Banjo fitting 45° – 3/8×24 |
| HYD-002VC | Banjo fitting 20° – 3/8×24 |
| HYD-006P | Adapter M10x1 / 3/8×24 |
| HYD-007P | Adapter 3/8×24 / 7/16×20 |
| HYD-014SC | Banjo fitting 45° |
| HYD-002SC | Banjo fitting 20° |
| HYD-008SC | Straight fitting 3/8×24 |
| HYD-009SC | Straight fitting 7/16×20 |
| Part Number | Description |
|---|---|
| HYD-005B | Copper seal |
| HYD-003P | Banjo bolt M10x100 |
| HYD-011D | Fitting for rubber hose (connection to reservoir) |
| HDA01 | EPDM hose for reservoir, specific for DOT4 brake fluid – per meter |
| ZGA01 | Cushioned tube clamps for stainless steel hose (batch of 10 clamps) |
| HEA11 | Raccord droit passe-cloison |
