Pompy hamulcowe – ręczne


Lever master cylinders – hand operated

Pompa hamulcowa: single MP-004.3 + MP-002 + CHP-003

Single MP-004.3 + MP-002 + CHP-003

Pompa hamulcowa: dual MP-004.4 + 2xMP-002 + 2xCHP-003

Dual MP-004.4 + 2xMP-002 + 2xCHP-003

Pompa hamulcowa: schemat

Schemat

Pompa hamulcowa: schemat

Schemat


Lever master cylinder – cable operated

Pompa hamulcowa: single MP-004.1 + MP-002 + CHP-003

Single MP-004.1 + MP-002 + CHP-003

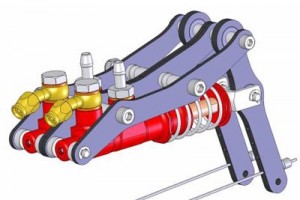

Pompa hamulcowa: dual MP-004.2 + 2xMP-002 + 2xCHP-003

Dual MP-004.2 + 2xMP-002 + 2xCHP-003

Pompa hamulcowa: schemat

Schemat


KITS for MP-002

Pompa hamulcowa: MP-004.4 - dual

MP-004.4 dual

Pompa hamulcowa: MP-004.3 - single

MP-004.3 single

Pompa hamulcowa: MP-004.2 - dual

MP-004.2 dual

Pompa hamulcowa: MP-004.1 - single

MP-004.1 single

CAUTION: The seals inside the MASTER BRAKE CYLINDERS are specific for each type of brake fluid.

  • It is not possible to put DOT4 brake fluid in a master cylinder with seals for MINERAL (MIL) fluid and it is not possible to put MINER-AL brake fluid in a master cylinder with seals for DOT4 brake fluid.
  • The letter E means for DOT4 brake fluid
  • The letter N means for MINERAL (MIL) brake fluid

Master cylinders & Lever master cylinders
Part Number Description Brake fluid Note Piston bore
inch
Standard pressure PSI Max pressure PSI Weight
g
MP-001N master cylinder Mineral 9/16 870 870 159
MP-002E master cylinder DOT4 * 1/2 870 1450 94
MP-002N master cylinder Mineral * 1/2 870 1450 94
MP-003E master cylinder DOT4 * 1/2 870 1450 113
MP-003N master cylinder Mineral * 1/2 870 1450 113
MP-004.1 Single Lever kit – cable operated ** 159
MP-004.2 Dual lever kit – cable operated ** 318
MP-004.3 Single lever kit – hand operated *** 139
MP-004.4 Dual lever kit – hand operated *** 272
PGT-001 Extender with bolt for MP-001 and MP-003 0
PGT-002 Extender with bolt for MP-002 9
PGT-003 Extender with bolt for MP-002 10
ZM-001 Rod end 23
CHP-002 Clevis for MP-003 7
CHP-003 Clevis for MP-002 14
CHP-004 Clevis for MP-002 14
CHP-005 Eye bolt for MP-003 9
BGE-011 Adapter for rod end 4
* For MP-002 and MP-003 the ends must be ordered separately
** Master cylinder is not included in the kit. Please order one MP-002 (E or N) and one CHP-003
*** Master cylinders are not included in the kit. Please order two MP-002 (E or N) and two CHP-003

Hydraulic fittings for master cylindersRight are only few exemples of hydraulic fittings and adaptors. Many other combinations are available.

Pompa hamulcowa: złączki hydrauliczne

Złączki hydrauliczne

Pompa hamulcowa: złączki hydrauliczne

Złączki hydrauliczne

Pompa hamulcowa: złączki hydrauliczne

Złączki hydrauliczne


Hand master cylinder AEROTEC®

  • built-in reservoir
  • parking brake pin optional
  • three ball bearing for smooth operation, long life
  • Covered with the world-wide AEROTEC® patents, it brings exceptional brake feeling
  • Machined from billet on CNC
  • To install on 22mm (7/8″) or 25mm (1″) axle or directly on flat surface with 2 screws

Pompa hamulcowa - ręczna - schemat - 01

Pompa hamulcowa – ręczna – schemat

Pompa hamulcowa - ręczna - schemat - 01

Pompa hamulcowa – ręczna – schemat

HAB02

HAB02

HAB

HAB

Master cylinder – cable operated

  • Built-in reservoir, delivered with aluminium support
  • Actuated with sleeved cable
  • only available for DOT4

HAC01

HAC01

Master cylinder – hand operatedAll in one: lever, master cylinder, sealed reservoir. To be mounted on Ø22mm axle or on support with two 6mm screws.

HAB04

HAB04

Master cylinders – hand operated
Part Number Description Weight
g
Brake fluid
HAB01 Built-in master cylinder 295 DOT4
HAB02 Built-in master cylinder with mechanical parking brake pin 295 DOT4
HAA03 Additionnal master cylinder to mount in serie (double braking control). To be used with primary HAB01 or HAB02 284 DOT4
HAC01 Master cylinder CABLE actuated with support 295 DOT4
HAB04 Master cylinder built-in reservoir 295 DOT4
